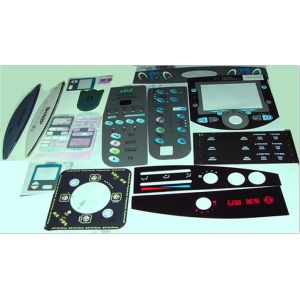

Customized Size, Multi-functional Flexible Membrane Switch Keyboard
With Texture Surface And LED
Product Features:
1) Multi-functional panel
2) Customized size
3) Multiple keys
4) Rich color
Customize Membrane Switch
FLEXKYS provides the service of customizing various membrane
switch, such as intergrading components into complex, custom
user-interface assemblies.We can mount
your switch panel to a rigidbacker, housing, casing, or to
additional printed circuit board assemblies.
We will do what we can to help you.
Quick Detail:
| Operating Temperature | -40—70(C°) | Operating Voltage | ≤50(V) |
| Rated Current | 0-30V DC | Contact resistance | 0.5-10( Ω) |
| Insulation Resistance | ≤50(Ω) | Key operation force | 15-750g |
| Dome springback time | ≤5(ms) | Substrate voltage | 1500VDC |
| Feature | Dust-proof , Waterproof | Certificate | SGS , Rohs |
Competitive Advantage:
1. Beautiful appearance,rich and bright in color,design can be
arbitrary,the products can fully reflect the individual style of
the product itself and designer.
2. Panel can wash,good protection of durable color,characters,logos
and other panel contents without injury.
3. Small size,light weight ,thin thickness,good tactility,abrasion
resistant,installation and connection convenience.
4. Moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and
erosion of harmful gases proof,acid and alkali proof,quakeproof.
5. Low cost,high lifespan,membrane switch's design and manufacture
are using the keyboard as a whole way,whether on the material or
mold charges,the costs are lowest,the life expectancy of different
types of membrane switch is more than 100million times.
6. Easy to operate,intuitive,safe and reliable,In-house 100%
functionally tested,components are guaranteed without any
intermittent problem.
7. Customized specification is available and keys can make
different shapes
Properties:
Operating voltage: < 35V DC
Operating current: < 100mA
Contact resistance: < 100 Ohms
Open circuit resistance: > 10M Ohms
Operating temperature: -35 to 70 degrees Celsius
Storage temperature: -45 to 90 degrees Celsius
Life expectancy: 500,000 to 30,000,000 cycles
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
Applications:
1. The mobile phone
Focuses on the flexible circuit board light weight and thin
thickness. Can effectively save the volume of products, easy
connection of the battery, microphone, and buttons and into one.
2. Computer and LCD screen
Use the one line configuration of flexible circuit boards, and thin
thickness. The digital signal into the picture, through the LCD
screen
3. CD player
Focuses on three dimensional assembly characteristics of flexible
circuit boards and thin thickness. The huge CD to carry around
4. Disk drives
Regardless of the hard disk, or diskette, is very dependent on FPC
high softness and thickness of the 0.1 mm slim, read data finish
quickly. Either a PC or NOTEBOOK.
5. The latest applications
Hard disk drives (HDDS, hard disk drive) of suspended circuit (Su
ensi. N cireuit) and the components of xe packaging board, etc
Design Service
Considering some customers aren't familiar with the technology
applied in membrane switch, our company is willing to provide the
switch design service for you. You just need to give us basic
information of your requests such as operating conditions. We will
devote ourselves to recommending the most suitable and
cost-effective intergrated solution for you ,
while taking function, performance, aesthetics,
budget and time into consideration. What's more, you will become a
member
of our design team, what we are designing will be In accordance
with your request.
There is no doubt that our team are combining our strengths,
experiences, and knowledge to serve you.
we manufacture complete line of membrane switches, our experienced
design team are ready to work with you to design membrane switches
to meet your unique needs of your project.
